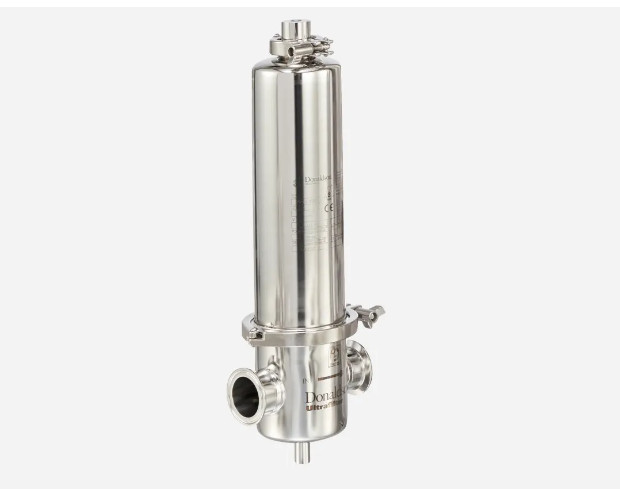

PG-EG Process Filter Housings

Applications where PG-EG filter housings are used include the pharmaceutical, biotechnology, chemical, electronic, and food and beverage industries.
Housings are equipped with a variety of connection and surface finish options to meet most processes. Custom options available upon request.

Design in compliance with:

• FDA CFR - Code of Federal Regulations Title 21
• Framework regulation 1935/2004/EU
• US 3-A Sanitary Standards

Features

• 3-A and ASME stamped & certified options
• Electropolished or nitric passivated finish to an Ra 32
• 316 stainless steel standard, available in 304
• 1/2 in. - 8 in. connections
• Gas capacity range of 61 to 21,530 m³/h / 36 to 12,672 scfm at 7 bar / 100 psig
