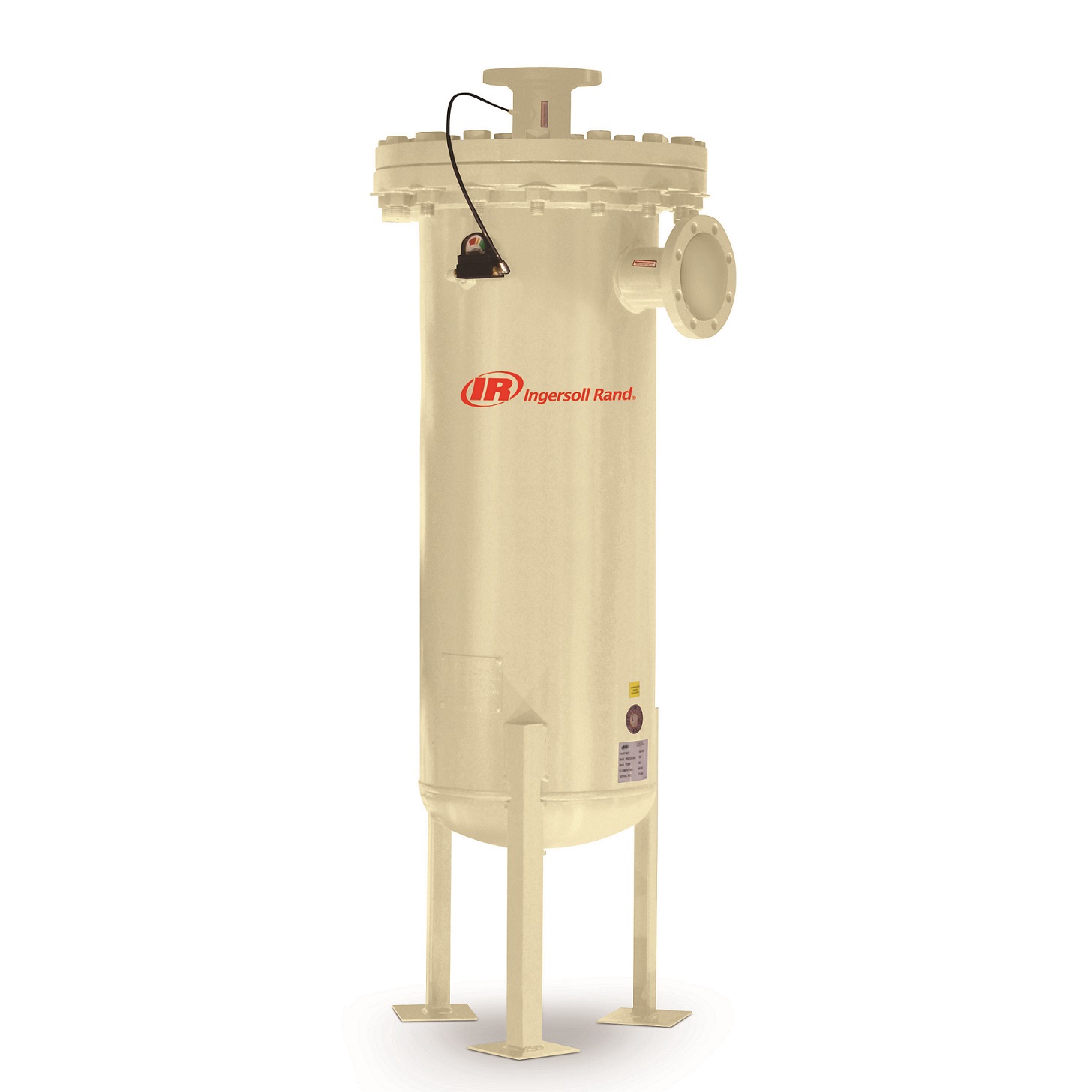

NL Module Coalescing Filters 210 - 17000 Nm3/h

Mã sản phẩm: S000119

Liên hệ

Ingersoll Rand’s NL Module high efficiency and coalescing filters provide compressed air with minimal pressure drop of 35mb for long-term cost savings. Superior air quality is achieved by effectively removing damaging oil and water aerosols before they flow through air system piping, process equipment and pneumatic valves and tools. These maintenance-free filters feature a high-quality design that extends element life up to 10 years and helps eliminate system downtime by reducing the effects of a catastrophic failure of the compressor’s air/oil separator.

Chi tiết sản phẩm

Efficient Equipment Protection: High-efficiency and coalescing filters with particulate filtration to 0.5 ppm, > 3 microns at 100%, between 0.1 to 3 microns at 99.98% . Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
Lower Energy Use: Low pressure drop (around 35mb compare to convetional filters average of 448mb) design saves on energy costs and provides an economical drying solution for your compressed air needs
Application Versatility: Effective on all common mineral and synthetic lubricants
Class 2: effective oil removal – 2 ppm in = 0.01 ppm out – 10 ppm in = 0.05 ppm out
Maximize Uptime: Enhanced process security that reduces the effects of catastrophic air/oil separator failures
Extend Equipment Life: High-quality, maintenance-free filters extend element life up to 10 years
Real Savings: Near Zero pressure drop and low-maintenance resulting in low energy costs
