Vỏ Lọc L-BH Liquid

Mã sản phẩm: S000082


Liên hệ


The L-BH single and multi-bag liquid housings feature heavy-duty construction for maximum durability and are a reliable solution for pre, coarse and bulk liquid filtration.


Chi tiết sản phẩm

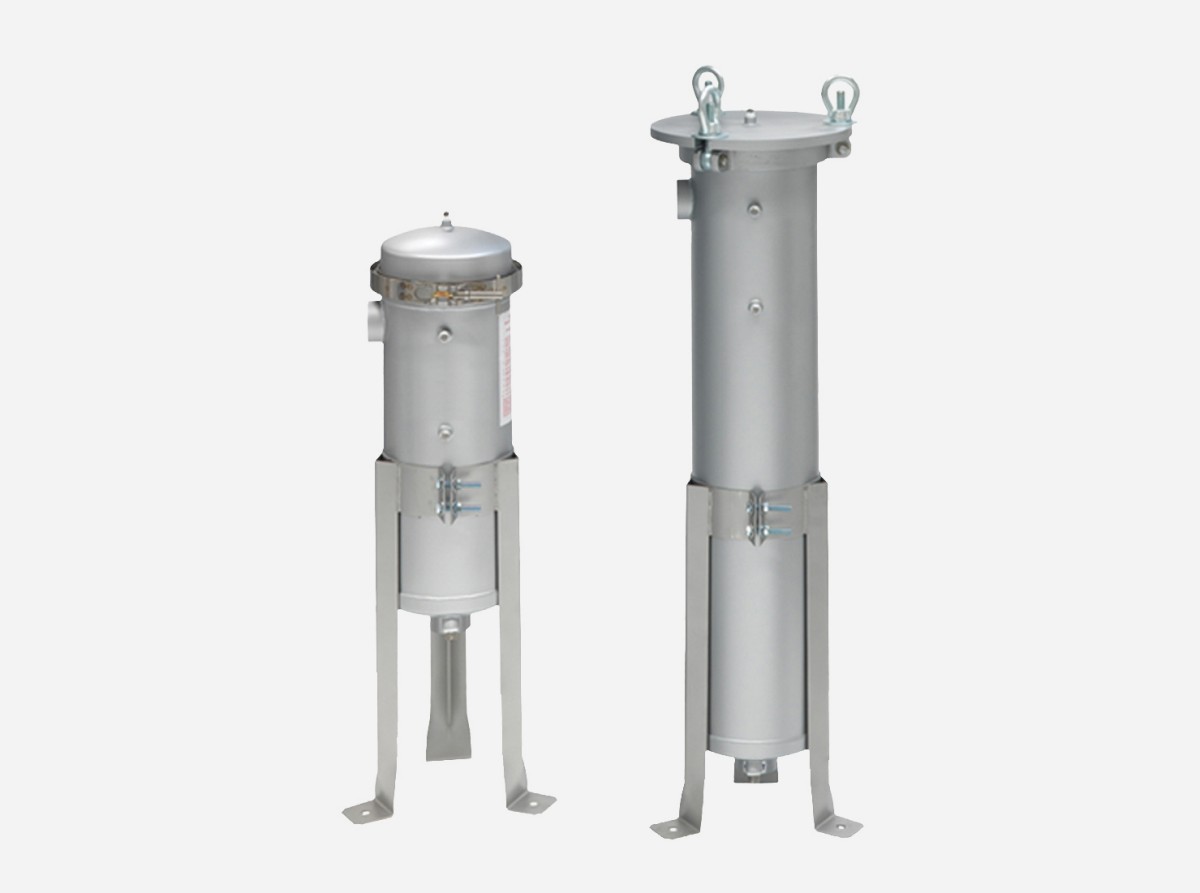

1. The single bag liquid housings:
The single bag liquid housings feature heavy-duty construction for maximum durability and are a reliable solution for pre, coarse, and bulk liquid filtration.

Features

#1 and # 2 bag housings:

  • Available in 316L SS, 304L SS or carbon steel construction
  • Clamp or swing bolt closures
  • Stainless steel compression spring for positive bag sealing
  • Adjustable stainless steel leg assembly
  • 6.4 mm / 1/4 in. FNPT gauge ports and 127 mm / 1/2 in. FNPT drain port

#3 and #4 bag housings:

  • 316 SS construction
  • Clamp closure for easy bag change outs
  • Adjustable leg assembly

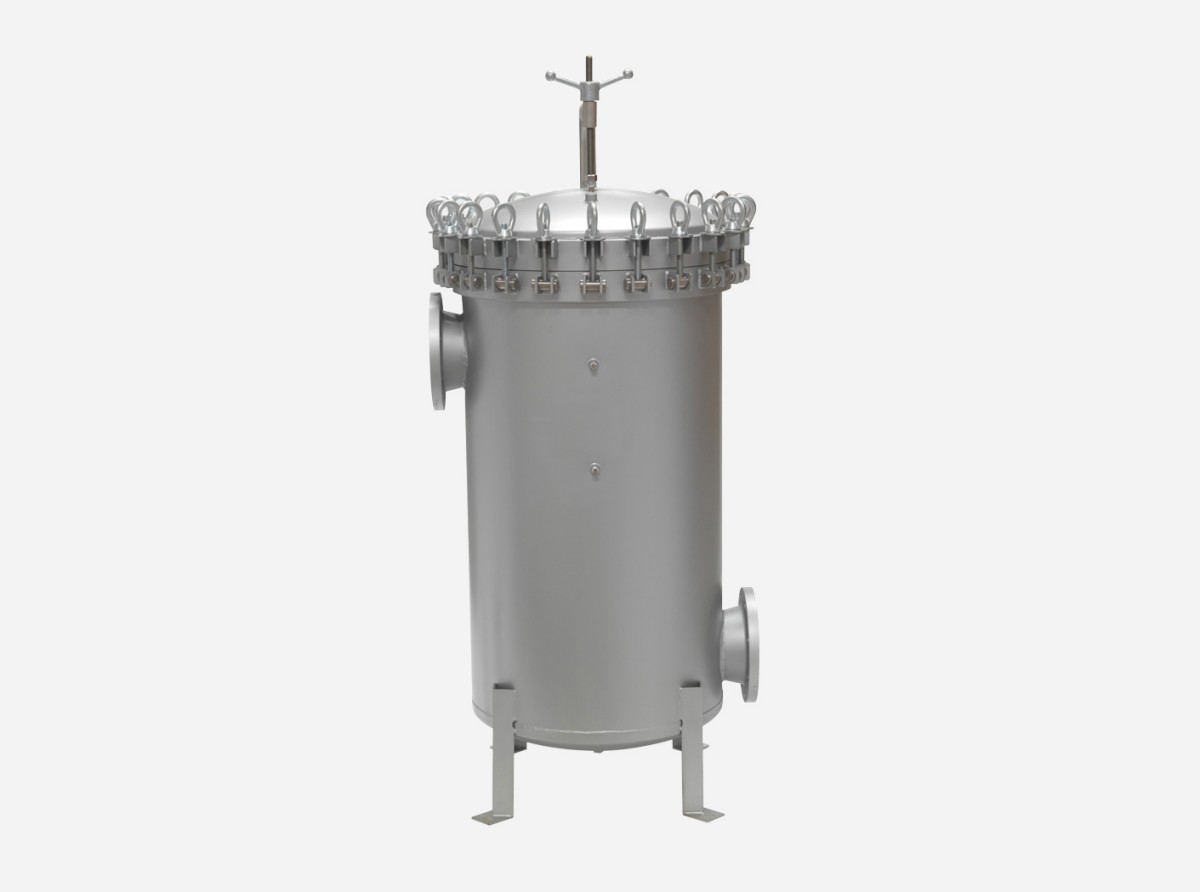

2. The multi-bag liquid housings:
The multi-bag liquid housings feature heavy-duty 304L or 316L stainless steel construction for maximum durability. They are compatible with size 2 bags, and are a reliable solution for pre, coarse, and bulk liquid filtration.

Multi-bag housings are available with either a clamp closure for quick and easy bag change-out or a swing bolt and davit closure ideal for larger flow applications.

Features

Clamp closure housing:

  • Clamp closure offers quick and easy bag change-out
  • 10.3 bar / 150 psi pressure rating up to 121° C /  250° F
  • 76.2 mm / 3 in. flanged connections

Swing bolt closure housing:

  • Heavy-duty swing bolt closure and davit assembly are ideal for larger flow applications
  • Low profile for easy bag change-outs
  • 10.3 bar / 150 psi pressure rating up to 149° C / 300° F
  • Eye nuts and davit handle are zinc plated to prevent gauling
