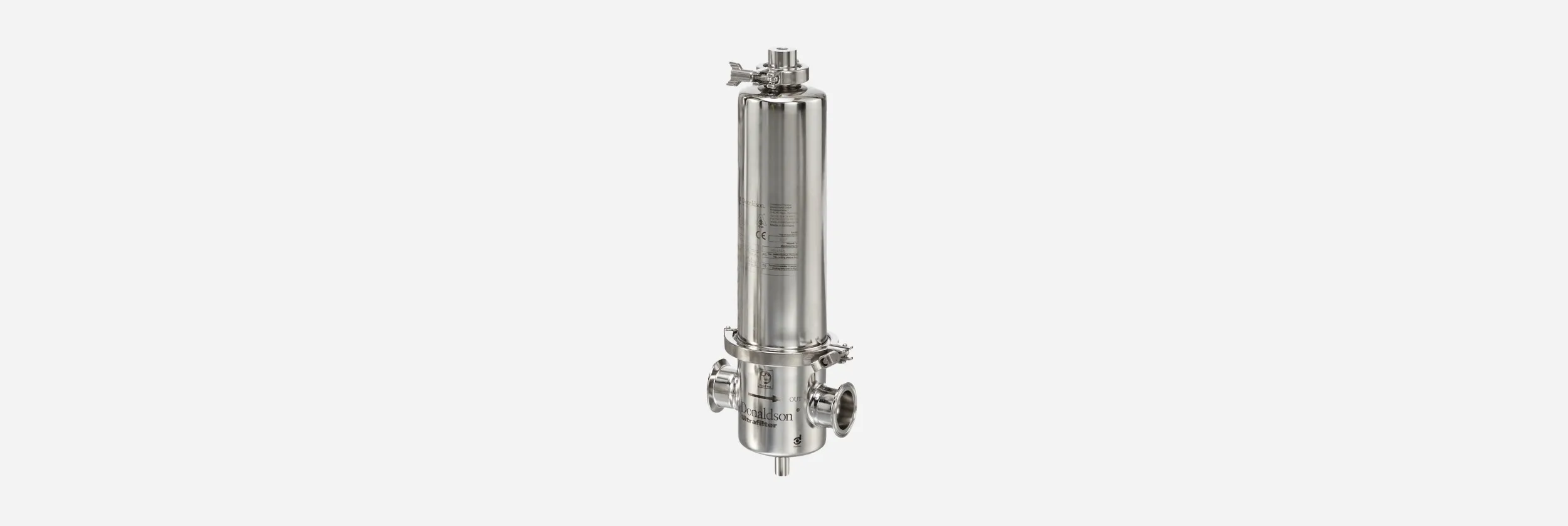

PG-EG Steam Filter Housings

Vỏ Lọc PG-EG Steam

Mã sản phẩm: S000102


Liên hệ


Donaldson PG-EG sanitary steam filter housings are designed for purification of industrial and culinary steam in the food and beverage, pharmaceutical, biotechnology, chemical and electronics industries.


Chi tiết sản phẩm

PG-EG single round filter housings are equipped with sanitary Tri-Clamp®* connections and are 3-A stamped and certified. The top vent is sealed with a pharma plug, while the bottom condensate drain is equipped with a pharma valve. The inner surface finish is electropolished to Ra 32. PG-EG filter housings are designed to yield low differential pressures at high flow rates.

Our multi-round housings are nitric passivated to Ra 32 and come standard with ANSI flange connections.

Features

  • Comes standard in 316L stainless steel, 304 stainless steel available upon request
  • Single round housings are electropolished to Ra 32, multi-round housings are nitric passivated to Ra 32
  • Tri-Clamp, ANSI flange and welded end connections available
  • Steam capacity range from 100 lb/hr to 17,100 lb/hr at 3 bar / 50 psig
